Support Vector Machines (II)

CISC 484/684 – Introduction to Machine Learning

Author
Affiliation

Sihan Wei

University of Delaware

Published

July 8, 2025

Dual Formulation

Recall: Hard-margin SVM

Primal Problem

\[ \begin{gathered} \min _{w, b} \frac{1}{2}\|w\|^2 \\ \text { s.t. } \quad y_i\left(w^T x_i+b\right) \geq 1, i=1, \ldots, n \end{gathered} \]

Dual Formulation for SVM

We first write out the Lagrangian:

\[ L(\mathbf{w}, b, \alpha)=\frac{1}{2}\|\mathbf{w}\|^2-\sum_{i=1}^n \alpha_i\left\{y_i\left(\mathbf{w} \cdot \mathbf{x}_i+b\right)-1\right\} \]

Then take derivative with respect to \(b\), as it is easy!

\[ \frac{\partial L}{\partial b}=-\sum_{i=1}^n \alpha_i y_i \]

Setting it to 0 , solves for the optimal \(b\), which is a constraint on the multipliers

\[ 0=\sum_{i=1}^n \alpha_i y_i \]

Then take derivative with respect to w :

\[ \frac{\partial L}{\partial w_j}=w_j-\sum_{i=1}^n \alpha_i y_i x_{i, j} \]

\[ \frac{\partial L}{\partial \mathbf{w}}=\mathbf{w}-\sum_{i=1}^n \alpha_i y_i \mathbf{x}_i \]

Setting it to 0 , solves for the optimal w :

\[ \mathbf{w}=\sum_{i=1}^n \alpha_i y_i \mathbf{x}_i \]

Then we now can use these as constraints and obtain a new objective:

\[ \tilde{L}(\alpha)=\sum_{i=1}^n \alpha_i-\frac{1}{2} \sum_{i=1}^n \sum_{j=1}^n \alpha_i \alpha_j y_i y_j \mathbf{x}_i^\top \mathbf{x}_j \]

  • Do not forget we have constraints as well
  • We are minimizing the dual problem

\[ \tilde{L}(\alpha)=\sum_{i=1}^n \alpha_i-\frac{1}{2} \sum_{i=1}^n \sum_{j=1}^n \alpha_i \alpha_j y_i y_j \mathbf{x}_i^\top \mathbf{x}_j \]

  • Subject to:

\[ \begin{gathered} \alpha_i \geq 0 \quad \forall i \\ \sum_{i=1}^n \alpha_i y_i=0 \end{gathered} \]

KKT Conditions

  • Under proper conditions there exists a solution

\[ \mathbf{w}^*, \alpha^*, \beta^* \]

  • such that the primal and dual have the same solution

\[ d^*=\mathcal{L}\left(\mathbf{w}^*, \alpha^*, \beta^*\right)=p^* \]

  • These parameters satisfy the KKT conditions

Sufficient conditions: \(f\) and \(g\) are convex, \(h\) are affine. Then there exists a solution; moreover p* \(=\) \(\mathrm{d}^*\) and the following Karush-Kuhn-Tucker (KKT) conditions hold:

\[ \begin{gathered} \frac{\partial}{\partial w_i} \mathcal{L}\left(\mathbf{w}^*, \alpha^*, \beta^*\right)=0, i=1, \ldots, m \\ \frac{\partial}{\partial \beta_i} \mathcal{L}\left(\mathbf{w}^*, \alpha^*, \beta^*\right)=0, i=1, \ldots, l \\ \alpha_i^* g_i\left(\mathbf{w}^*\right)=0, i=1, \ldots, n \\ g_i\left(\mathbf{w}^*\right) \leq 0, i=1, \ldots, n \\ \alpha_i^* \geq 0, i=1, \ldots, n \end{gathered} \]

Dual vs Primal Formulation

  • In the primal we have \(d\) variables to solve
  • Solve for the vector \(w\) (length of features)
  • In the dual we have \(n\) variables to solve
  • Solve for the vector \(\alpha\) (length of examples)
  • When to use the primal?
    • Lots of examples without many features
  • When to use the dual?
    • Lots of features without many examples

Practice Question

If you’re training an SVM on 100 images (each 10000 pixels), which form would be more efficient?

. . .

Answer: dual, because \(d = 10000\), \(n = 100\) → better to solve in example space.

Soft-margin SVM

Non-separable Data

  • But not all data is linearly separable
    • What will SVMs do?
    • The regularization forces the weights to be small
  • But it must still find a max margin solution
  • Idea: for every data point, we introduce a slack variable. The value is the distance of the data from the corresponding class’s margin if it is on the wrong side of the margin, otherwise zero.

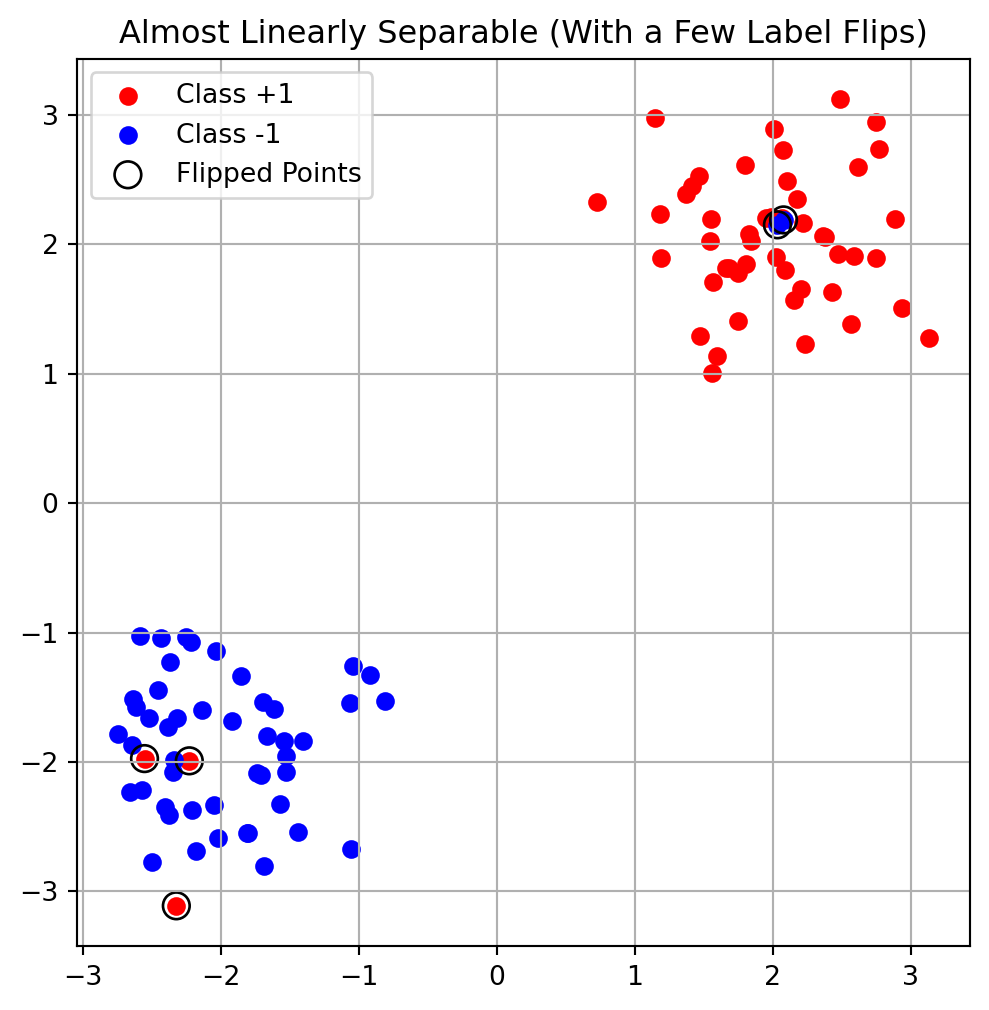

Example: Non-linearly Separable data in 2D

Slack Variables

For each of the \(n\) training examples, we will introduce an non-negative variable \(\xi_i\), and the optimization problem becomes:

\[ \begin{aligned} & \quad \min _{\mathbf{w}} \frac{1}{2}\|\mathbf{w}\|_2^2+C \sum_{i=1}^n \xi_i \quad \text { such that } \\ & \forall i, \quad y_i\left(\mathbf{w}^{\top} x_i\right) \geq 1-\xi_i \\ & \forall i, \quad \xi_i \geq 0 \end{aligned} \]

This is also called the soft-margin SVM.

Note that \(\xi_i /\|\mathbf{w}\|_2\) is the distance the example \(i\) need to move to satisfy the constraint \(y_i\left(\mathbf{w}^{\top} x_i\right) \geq 1\).

  • \(C\) is a hyperparameter controlling how many points we allow to violate the margin constraint.
  • We can always satisfy the margin using \(\xi\)
    • We want these \(\xi\) to be small
    • Trade off parameter \(C\)

Dual Derivation for Soft-Margin SVM

  • We introduce slack variables \(\xi_i\) for soft-margin violations.
  • The Lagrangian becomes:

\[ \begin{aligned} \mathcal{L}(w, b, \boldsymbol{\alpha}, \boldsymbol{\xi}, \boldsymbol{\mu}) &= \frac{1}{2} \|w\|^2 + C \sum_{i=1}^n \xi_i \\ &\quad- \sum_{i=1}^n \alpha_i \left( y_i(w^\top x_i + b) - 1 + \xi_i \right) \\ &\quad- \sum_{i=1}^n \mu_i \xi_i \end{aligned} \]

Solving the Lagrangian

  • Taking derivatives and setting to 0 gives the same dual objective as in hard-margin:

\[ \sum_{i=1}^n \alpha_i - \frac{1}{2} \sum_{i=1}^n \sum_{j=1}^n \alpha_i \alpha_j y_i y_j \langle x_i, x_j \rangle \]

  • But with different constraints:

\[ \frac{\partial \mathcal{L}}{\partial \xi_i} = 0 \quad \Rightarrow \quad \alpha_i + \mu_i = C \]

  • Thus, we obtain:

\[ 0 \le \alpha_i \le C \]

Soft Margin

  • Points that are far away from the margin on the wrong side would get more penalty.
  • All misclassified examples will be support vectors
  • All points “crossed” the margin line will be support vectors

\[ \alpha_i^* g_i\left(\mathbf{w}^*\right)=0, i=1, \ldots, n \]

Bias VS Variance

  • Smaller C means more slack (larger \(\xi\))
    • More training examples are wrong
    • More bias (less variance) in the output
  • Larger C means less slack (smaller \(\xi\))
    • Better fit to the data
    • Less bias (more variance) in the output
  • For non-separable data we can’t learn a perfect separator so we don’t want to try too hard
    • Finding the right balance is a tradeoff

Support Vectors

The Role of Lagrange Multipliers

In the SVM framework, each training data point is associated with a Lagrange multiplier, denoted as \(\alpha_i\). The decision boundary is computed as:

\[ \mathbf{w}^* = \sum_{i=1}^n \alpha_i y_i \mathbf{x}_i \]

Only those data points for which \(\alpha_i > 0\) contribute to this sum. In other words, if a data point’s corresponding multiplier is zero, it has no impact on the decision boundary. These influential points are what we call support vectors.

Support Vectors in Hard-Margin SVM

For datasets that are perfectly separable, we use a hard-margin SVM. Here, the complementary slackness condition tells us:

\[ \alpha_i(1 - y_i\mathbf{w}^\top\mathbf{x}_i) = 0 \]

This equation means that for points not on the margin (where \(y_i\mathbf{w}^\top\mathbf{x}_i > 1\)), the multiplier \(\alpha_i\) must be 0. Hence, only those points that lie exactly on the margin (where \(y_i\mathbf{w}^\top\mathbf{x}_i = 1\)) have non-zero multipliers and are thus support vectors.

Support Vectors in Soft-Margin SVM

When data is not perfectly separable, SVMs use a soft-margin approach with slack variables \(\xi_i\). The complementary slackness and KKT conditions become:

\[ \alpha_i(1 - y_i\mathbf{w}^\top\mathbf{x}_i - \xi_i) = 0 \\ (C - \alpha_i)\xi_i = 0 \]

We then encounter two cases:

  1. \(\alpha_i > 0\), \(\xi_i = 0\): The point lies exactly on the margin border. It is a support vector.

  2. \(\alpha_i > 0\), \(\xi_i > 0\): The point is either inside the margin or misclassified. Here, \(\alpha_i = C\). These points also influence the decision boundary and are support vectors.

In contrast, points with \(\alpha_i = 0\) lie far from the margin and do not affect the model.

Practice Questions (I)

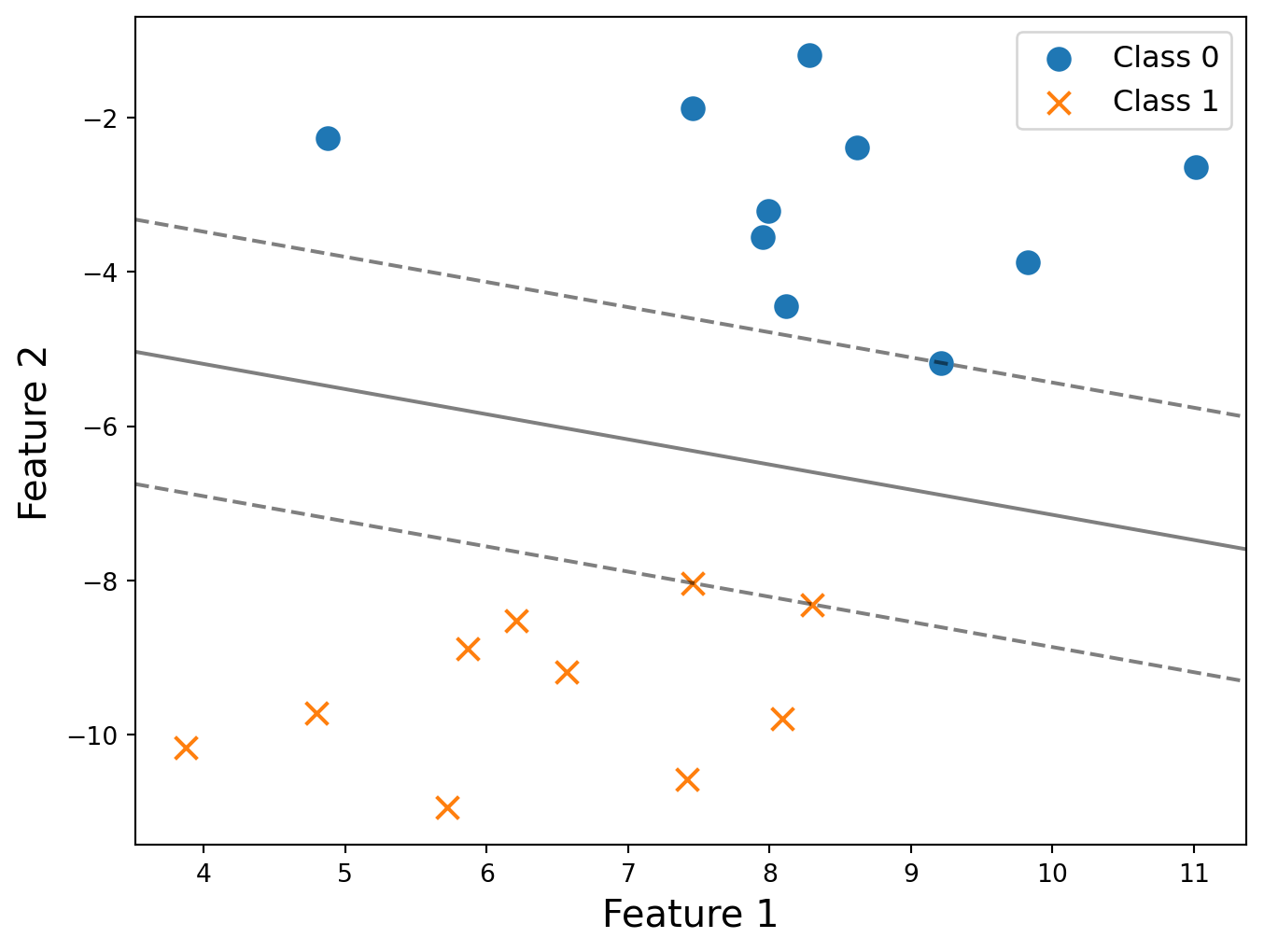

  • How many support vectors in this plot? Circle all of them.

The number of suppost vectors is 3.

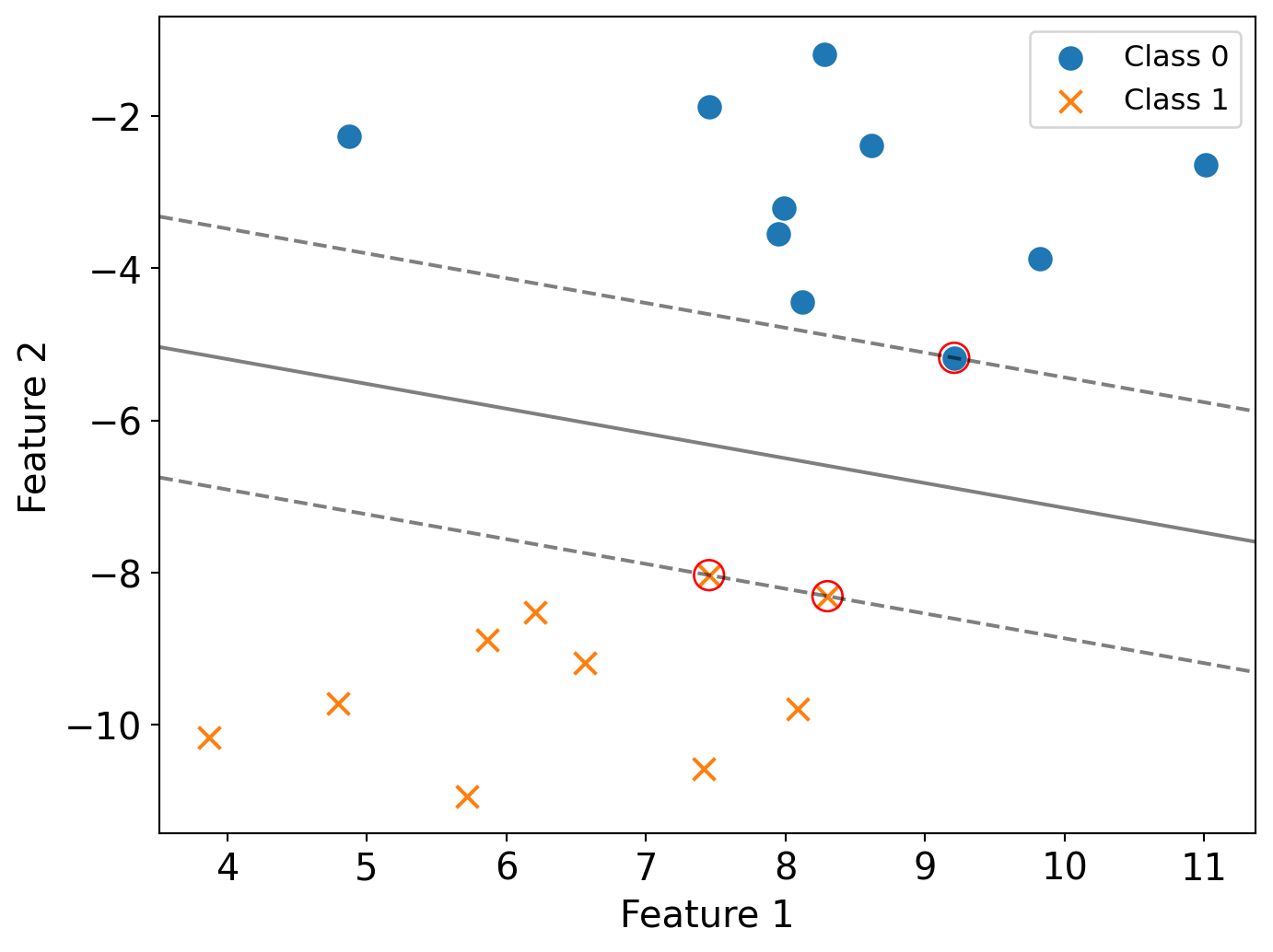

In hard-margin SVM, only the data points that lie exactly on the margin boundaries are support vectors.

Practice Question (II)

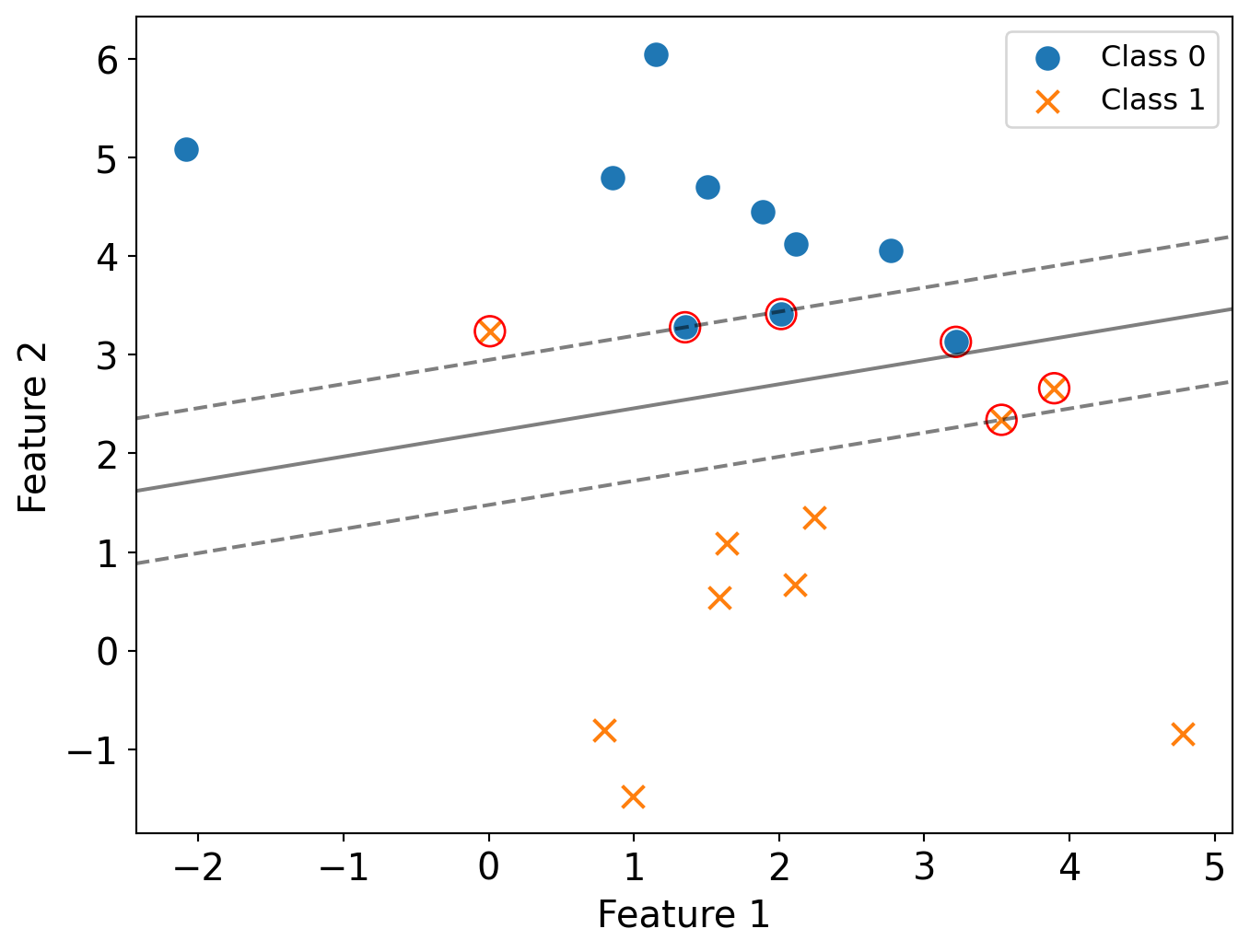

  • How many support vectors in this plot? Circle all of them.

The number of support vectors is 6.

In the soft-margin setting, support vectors are:

  • Points lying exactly on the margin boundaries
  • Points that are within the margin
  • Points that are misclassified (on the wrong side of the decision boundary)

Kernels

How to deal with non linearly separable data

  • Option 1: Add features by hand that make the data separable
    • Requires feature engineering
  • Option 2: Soft-margin and trade off bias and variance
  • Option 3: transform to a different feature space by using feature mapping functions

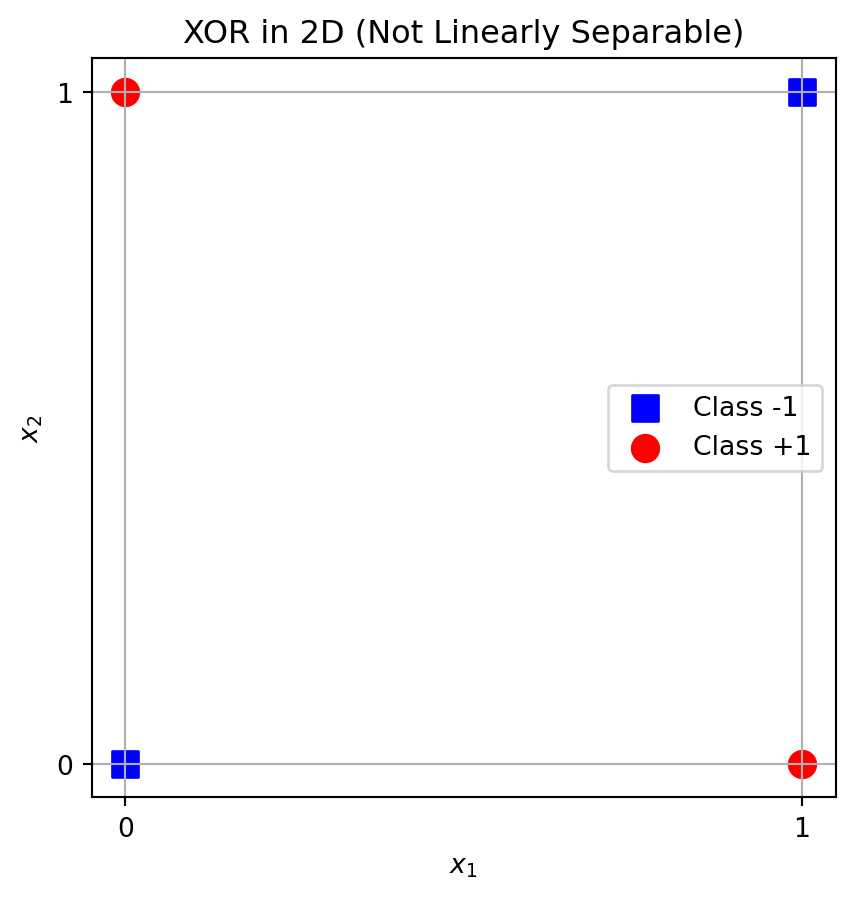

Example: XOR Dataset

  • It is linearly non-separable in the 2D space.

What’s the fix?

To separate XOR using a linear hyperplane, we need to lift it to a higher-dimensional feature space like:

\[ \phi(x)=\left(x_1, x_2, x_1 \cdot x_2\right) \]

Then in 3D space with this embedding, we can separate the classes using a linear function

For example, let’s try:

\[ f(x)=-1+2 x_1+2 x_2-4 x_1 x_2 \]

Plug it in for all 4 points:

Point \(f(x)\) Label
(0,0) -1 -1 ✅
(0,1) +1 +1 ✅
(1,0) +1 +1 ✅
(1,1) -1 -1 ✅

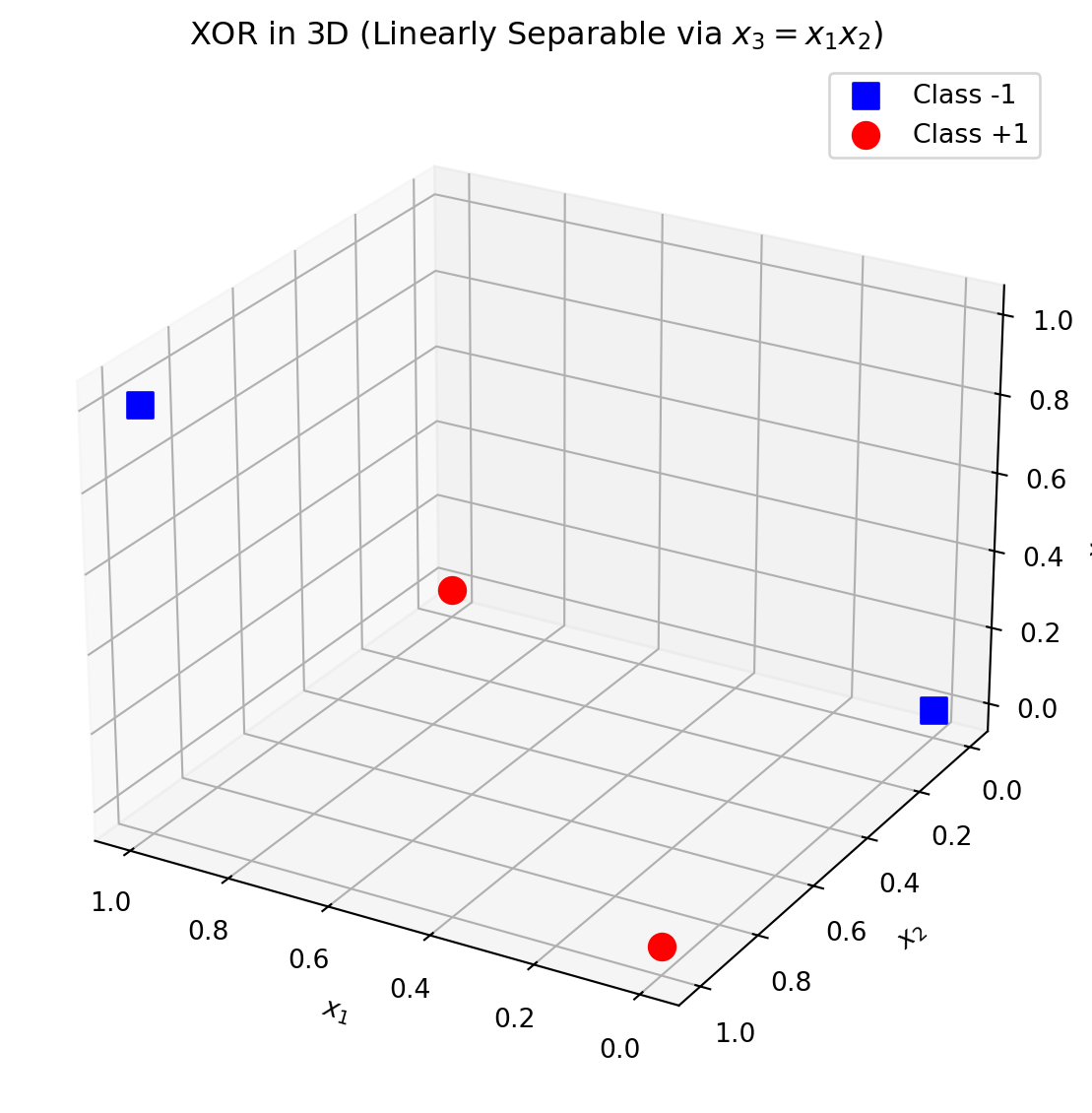

XOR in 3D with Lifted Feature \(x_3 = x_1 x_2\)

  • The dataset is linearly separable in 3D.

Key Observations

\[ \boldsymbol{x}^T \cdot \boldsymbol{w}=\boldsymbol{x}^T \cdot \sum_{i=1}^n\left[\alpha_i \boldsymbol{y}_i \boldsymbol{x}_i\right]=\sum_{i=1}^n \alpha_i \boldsymbol{y}_i\left(\boldsymbol{x}^T \cdot \boldsymbol{x}_i\right) \]

  • Our prediction is only dependent on the dot product of data or the product of features!

\[ x^T \cdot w=\sum_1^n \alpha_i y_i\left(\phi(x) \cdot \phi\left(x_i\right)\right) \]

Kernels

  • Let’s replace \(\phi\left(\boldsymbol{x}_i\right) \phi\left(\boldsymbol{x}_j^T\right)\) with a kernel function K

\[ \sum_{i=1}^n \alpha_i-\frac{1}{2} \sum_{i=1}^n \sum_{j=1}^n y_i y_j \alpha_i \alpha_j K\left(x_i, x_j\right) \]

  • where

\[ \boldsymbol{x}^T \cdot \boldsymbol{w}=\boldsymbol{x}^T \cdot \sum_{i=1}^n\left[\alpha_i \boldsymbol{y}_i \boldsymbol{x}_i\right]=\sum_{i=1}^n \alpha_i \boldsymbol{y}_i K\left(\boldsymbol{x}, \boldsymbol{x}_i\right) \]

\[ K\left(x, x^{\prime}\right)=\left(\phi(x) \phi\left(x^{\prime}\right)^T\right) \]

Why?

  • We have removed all dependencies in the SVM on the size of the feature space
  • The feature space \(\phi(x)\) appears only in the kernel
  • As long as the Kernel function does the work, we can handle any feature space

Definition

A kernel function \(K: \mathcal{X} \times \mathcal{X} \rightarrow \mathbb{R}\) is a symmetric function such that for any \(x_1, x_2, \ldots, x_n \in \mathcal{X}\), the \(n \times n\) Gram matrix \(G\) with each \((i, j)\)-th entry \(G_{i j}=K\left(x_i, x_j\right)\), is positive semidefinite (p.s.d.).

Recall that a matrix \(G \in \mathbb{R}^{n \times n}\) is positive semi-definite if and only if \(\forall q \in \mathbb{R}^n, q^{\top} G q \geq 0\).

How to show \(K\) is a kernel? A

A simple way to show a function \(K\) is a kernel is to find a feature expansion mapping \(\phi\) such that

\[ \phi(x)^{\top} \phi\left(x^{\prime}\right)=K\left(x, x^{\prime}\right) \]

Practice Question

Let \(\mathbf{x} = \begin{bmatrix} x_1 \\ x_2 \end{bmatrix} \in \mathbb{R}^2\) and define: \[ K(\mathbf{x}, \mathbf{z}) = (\mathbf{x}^\top \mathbf{z})^2 \]

Questions:

  1. Is \(K(\mathbf{x}, \mathbf{z})\) a valid kernel function?
  2. If so, find a feature map \(\phi : \mathbb{R}^2 \to \mathbb{R}^d\) such that: \[ K(\mathbf{x}, \mathbf{z}) = \phi(\mathbf{x})^\top \phi(\mathbf{z}) \]

Solution

We expand the expression: \[ (\mathbf{x}^\top \mathbf{z})^2 = (x_1 z_1 + x_2 z_2)^2 = x_1^2 z_1^2 + 2x_1x_2 z_1z_2 + x_2^2 z_2^2 \]

This is the same as: \[ \phi(\mathbf{x})^\top \phi(\mathbf{z}) \quad \text{where} \quad \phi(\mathbf{x}) = \begin{bmatrix} x_1^2 \\ \sqrt{2} x_1 x_2 \\ x_2^2 \end{bmatrix} \]

Final Answer:

\[ \phi(\mathbf{x}) = \begin{bmatrix} x_1^2 \\ \sqrt{2} x_1 x_2 \\ x_2^2 \end{bmatrix} \quad \text{maps } \mathbb{R}^2 \to \mathbb{R}^3 \]

So \(K(\mathbf{x}, \mathbf{z})\) is a valid kernel, corresponding to an inner product in feature space.

Kernel Preserving Operations

Suppose \(K_1, K_2\) are valid kernels, \(c \geq 0, g\) is a polynomial function with positive coefficients (that is \(\sum_{j=1}^m \alpha_j x^j\) for some \(m \in \mathbb{N}, \alpha_1, \ldots, \alpha_m \in\) \(\mathbb{R}^{+}\)), \(f\) is any function and matrix \(A \succeq 0\) is positive semi-definite. Then following functions are also valid kernels:

  • \(K\left(x, x^{\prime}\right)=c K_1\left(x, x^{\prime}\right)\)
  • \(K\left(x, x^{\prime}\right)=K_1\left(x, x^{\prime}\right)+K_2\left(x, x^{\prime}\right)\)
  • \(K\left(x, x^{\prime}\right)=g\left(K\left(x, x^{\prime}\right)\right)\)
  • \(K\left(x, x^{\prime}\right)=K_1\left(x, x^{\prime}\right) K_2\left(x, x^{\prime}\right)\)
  • \(K\left(x, x^{\prime}\right)=f(x) K_1\left(x, x^{\prime}\right) f\left(x^{\prime}\right)\)
  • \(K\left(x, x^{\prime}\right)=\exp \left(K_1\left(x, x^{\prime}\right)\right)\)
  • \(K\left(x, x^{\prime}\right)=x^{\top} A x^{\prime}\)

You will need to prove one of these properties in homework.

Examples of kernel functions

  • Linear: \(K\left(x, x^{\prime}\right)=x^{\top} x^{\prime}\). (Althoug this does not modify the features, it can be faster to pre-compute the Gram matrix when the dimensionality \(d\) of the data is high.)
  • Polynomial:

\[ K\left(x, x^{\prime}\right)=\left(1+x^{\top} x^{\prime}\right)^d \]

  • Radial Basis Function (RBF) (aka Gaussian Kernel):

\[ K\left(x, x^{\prime}\right)=\exp \left(-\gamma\left\|x-x^{\prime}\right\|^2\right) \]

Example: RBF

  • Radial Basis Function (RBF) Kernel (Gaussian Kernel)

\[ K\left(x, x^{\prime}\right)=\exp \left(-\gamma\left\|x-x^{\prime}\right\|^2\right) \]

  • \(\gamma\) is the “spread” of the kernel
  • Gaussian function in kernel form

Example: RBF

  • Why is this a kernel?
  • Inner product of two vectors in infinite dimensional space

\[ K\left(x, x^{\prime}\right)=<\psi(x), \psi\left(x^{\prime}\right)> \]

where

\[ \psi: \mathbb{R}^n \rightarrow \mathbb{R}^{\infty} \]

Example: RBF

  • What is the RBF kernel measuring?
  • Similarity as a decaying function of the distance between the vectors (squared norm of distance)
  • Closer vector have smaller difference, and thus the value will be larger ( \(-\gamma\) )
  • \(\gamma\) sets the width of the bell shaped curve
  • Larger values, narrower bell

\[ K\left(x, x^{\prime}\right)=\exp \left(-\gamma\left\|x-x^{\prime}\right\|^2\right) \]
