ML Foundations

CISC 484/684 – Introduction to Machine Learning

Sihan Wei

June 12, 2025

Quick Updates

  • Final exam:
    • Time: 08/15/2025, 4:30PM - 6:30PM
    • Location: SHL 105
    • The last day of class will be a final review
  • Canvas course page published (questions?)
  • HW 1 will be out tonight

Recall

What is Machine Learning?

  • A set of methods that can automatically detect patterns in data.

  • Use uncovered patterns to predict future data.

  • Core components:

    • Data
    • Model / Hypothesis
    • Algorithm to fit the model to data

When Should We Use ML?

  • Problem is well defined.
  • No deterministic/rule-based solution.
  • Have large amounts of high-quality data.
  • Evaluation is clear and meaningful.

Genres of Machine Learning

  • Supervised Learning (with labels)
    • Regression: continuous labels
    • Classification: discrete labels
  • Unsupervised Learning (without labels)
  • Semi-supervised Learning (partially labeled data — not covered in this course)
  • Reinforcement Learning (learning from interaction — not covered in this course)

Setup

Fundamental Assumption in Machine Learning

  • i.i.d. assumption: data are independent and identically distributed
    • Independence: each data point is assumed to be unrelated to others
    • Identical distribution: all data points are drawn from the same underlying probability distribution

Formal Setup

  • Input space: \(\mathcal{X}\) (features)
  • Output space: \(\mathcal{Y}\) (labels or targets)
  • Unknown joint distribution: \(p(\mathbf{x}, y)\) over \(\mathcal{X} \times \mathcal{Y}\)
  • We are given a training set of \(N\) labeled examples:
    \[ (\mathbf{x}_i, y_i), \quad i = 1, \ldots, N \] where each pair is drawn i.i.d. from \(p\);
    \(\mathbf{x}_i \in \mathcal{X}\), \(y_i \in \mathcal{Y}\)
  • Goal: Learn a function \(f: \mathcal{X} \rightarrow \mathcal{Y}\) that accurately predicts \(y\) for unseen \(\mathbf{x} \sim p\)

A Familiar Example

Suppose you’re building a system to predict student exam scores based on how many hours they studied. This is a classic example of a supervised learning problem.

  • Input: hours studied → \(x\)
  • Output: exam score → \(y\)

We collect training data in the form of:

\[ \{(x^{(1)}, y^{(1)}),\ (x^{(2)}, y^{(2)}),\ \dots,\ (x^{(n)}, y^{(n)})\} \]

Our goal is to learn a function that maps new values of \(x\) (study time) to predicted scores \(y\).

The Learning Problem

Given data:

\[ \{(x^{(i)}, y^{(i)})\}_{i=1}^n \]

we want to learn a function \(h(x)\) such that:

\[ h(x) \approx y \]

  • \(h(x)\): prediction made by the model
  • \(y\): the true label (possibly noisy)

The Role of the Hypothesis

We call the function we learn the hypothesis, \(h\):

  • It’s our best guess of the true function
  • It’s trained by minimizing a loss on data

The ultimate goal is not to memorize \(y\), but to generalize well to new (unseen) \(\mathbf{x}\).

Modeling Assumption

In supervised learning, we often assume:

\[ y = f(x) + \epsilon \]

Where:

  • \(f(x)\): the true underlying relationship between input \(x\) and output \(y\) (unknown and possibly unknowable)
  • \(y\): the observed label (often noisy)
  • \(\epsilon\): random noise (e.g., measurement error, unobserved variables)
  • \(h(x)\): our learned model — an approximation of \(f(x)\)

Common Sources of Noise

  • The noise term \(\epsilon\) captures uncertainty and unmodeled influences, such as:
    • Measurement or sensor errors
    • Missing or unobserved variables
    • Inherent randomness in the environment or process

More About the Noise Term

  • We typically assume the noise \(\epsilon\) satisfies:
    • Zero mean (white noise): \(\mathbb{E}[\epsilon \mid x] = 0\)
    • Why?
  • Sometimes, we also assume: \[ \epsilon \sim \mathcal{N}(0, \sigma^2) \]
    • Not necessary, helpful for analysis.
  • Without the zero-mean assumption, the model would be learning a systematically biased target.

Our Hypothesis \(h(x)\)

  • We don’t know \(f(x)\), but we learn a model \(h(x)\)
  • We assume:

\[ y = f(x) + \epsilon \quad \Rightarrow \quad \mathbb{E}[y \mid x] = f(x) \]

  • So we train \(h(x)\) to minimize the difference from \(y\), hoping:

\[ h(x) \approx f(x) \]

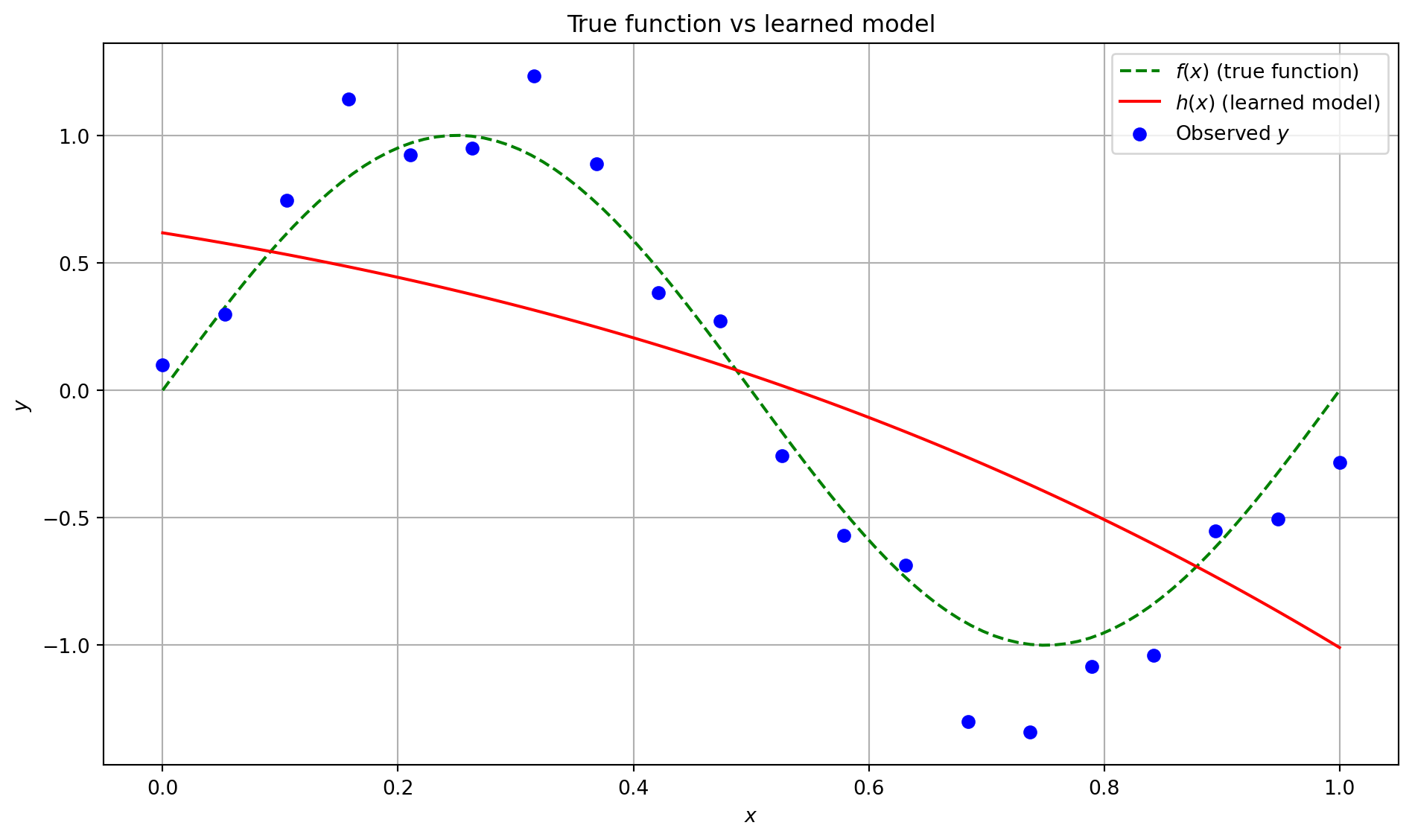

Visualization

Hypothesis Class

Motivation: Why Do We Need Hypothesis Classes?

  • Before we can learn a function \(h\), we must define what kind of functions we are willing to consider.
    • Linear functions? Neural networks? Decision trees? Polynomials?

Motivation Cont’d

  • Specifying a hypothesis class means choosing a set of allowable functions.
    • This encodes our assumptions about the structure of the problem.
    • It also determines what the learning algorithm can possibly discover.

Definition: Hypothesis Class

  • A hypothesis class is the set of functions that a learning algorithm can search over.

  • It defines the space of possible models we allow during training.

  • Example (linear regression):
    The hypothesis class is all linear functions of the form:
    \[ f(x) = w^T x \]

Choosing a Hypothesis Class

  • A rich hypothesis class is highly expressive, but may overfit the training data.

  • A simple hypothesis class is easier to learn and generalize from, but may underfit the true pattern.

  • The goal is to choose a class that:

    • Is expressive enough to contain a good (or optimal) solution
    • Is simple enough to avoid overfitting and enable efficient learning

Hypothesis Class Tradeoff

Loss Functions

What Is a Loss Function?

  • A loss function quantifies how “bad” a prediction is — it measures the discrepancy between the predicted output \(h(x)\) and the true label \(y\).

  • Formally, it’s a function: \[ \ell(h(x), y) \in \mathbb{R}_{\geq 0} \] where smaller values indicate better predictions.

Why Do We Need It?

  • It gives the learning algorithm a goal: minimize the total (or average) loss over the training data.

  • Without a loss function, we wouldn’t have a way to compare different hypotheses \(h\).

  • Different tasks (regression, classification) use different loss functions tailored to the nature of the output and the goal.

0-1 Loss

The 0-1 loss measures whether a prediction is correct or not:

\[ \ell_{0-1}(h(x), y) \stackrel{\text{def}}{=} \begin{cases} 0 & \text{if } h(x) = y \\ 1 & \text{if } h(x) \neq y \end{cases} \]

  • Common in classification tasks
  • Easy to interpret, but hard to optimize directly (non-convex, non-differentiable)

Squared Loss

The squared loss measures the squared difference between the prediction and the true label:

\[ \ell_{\text{sq}}(h, (x, y)) = (h(x) - y)^2 \]

  • Commonly used in regression tasks
  • Penalizes larger errors more heavily than smaller ones
  • Differentiable and convex — easy to optimize with gradient-based methods

Why Use Squared Loss?

  • Assumes that errors (noise) are zero-mean and symmetric — often modeled as Gaussian

  • Leads to the mean squared error (MSE) objective: \[ \frac{1}{n} \sum_{i=1}^n (h(x^{(i)}) - y^{(i)})^2 \]

  • The optimal predictor under squared loss is the conditional mean: \[ h^*(x) = \mathbb{E}[y \mid x] \]

Risk

Risk: What Are We Minimizing?

  • Once we define a loss function \(\ell(h(x), y)\), we can define the total “badness” of a predictor \(h\).

  • The expected (generalization) risk is the average loss over the true data distribution \(p(x, y)\):

\[ R(h) = \mathbb{E}_{(x, y) \sim p}[\ell(h(x), y)] \]

  • This is what we really care about: how well does \(h\) perform on future, unseen data?

Empirical Risk

  • But we don’t know the true distribution \(p(x, y)\)!

  • Instead, we minimize the empirical risk — the average loss over the training data:

\[ \hat{R}(h) = \frac{1}{n} \sum_{i=1}^{n} \ell(h(x^{(i)}), y^{(i)}) \]

  • This is computable — and what training algorithms actually minimize.

  • Empirical Risk Minimization (ERM): \[ h^* = \arg\min_h \hat{R}(h) \]

Why This Matters

  • Good performance on training data (\(\hat{R}(h)\)) does not guarantee good performance on test data (\(R(h)\)).

  • The gap between \(R(h)\) and \(\hat{R}(h)\) is called the generalization gap.

  • Goal: design learning algorithms and hypothesis classes so that this gap is small.

Generalization: The Ultimate Goal

  • A good model should not just perform well on training data, but also on unseen data.

  • Generalization = small gap between:

    • Empirical risk \(\hat{R}(h)\) (on training set)
    • True risk \(R(h)\) (on the data distribution)

  • Generalization is what separates learning from memorization.

Hoeffding’s Inequality

Let \(h\) be a fixed hypothesis and assume: - Loss \(\ell(h(x), y) \in [0, 1]\) - \((x^{(i)}, y^{(i)})\) are drawn i.i.d. from distribution \(p(x, y)\)

Then, Hoeffding’s inequality says:

\[ \Pr\left( \left| R(h) - \hat{R}(h) \right| \geq \gamma \right) \leq 2 \exp(-2n\gamma^2) \]

  • \(R(h)\) = true risk
  • \(\hat{R}(h)\) = empirical risk
  • \(n\) = number of training examples
  • \(\gamma\) = generalization gap

Interpretation

  • With high probability, the empirical risk is close to the true risk.
  • As \(n\) increases, the probability of a large generalization gap shrinks exponentially.
  • This holds for a fixed hypothesis \(h\).

But what if we choose \(h\) after seeing the data? → Let’s talk about uniform convergence next.

Uniform Convergence

To guarantee generalization for all hypotheses in a finite class \(\mathcal{H}\), we use the union bound:

\[ \Pr\left( \exists h \in \mathcal{H}: |R(h) - \hat{R}(h)| \geq \gamma \right) \leq 2 |\mathcal{H}| \cdot \exp(-2n\gamma^2) \]

  • The probability that any hypothesis in \(\mathcal{H}\) has large error is bounded.
  • As \(|\mathcal{H}|\) increases, the bound gets looser.

Underfitting vs Overfitting

  • Underfitting:
    • Model is too simple to capture patterns in the data
    • High training error and high test error
  • Overfitting:
    • Model is too complex, learns noise in the training data
    • Low training error, but high test error
  • Goal: Find a model that generalizes well

Bad Example: The “Memorizer”

Consider a function \(h(\cdot)\) that simply memorizes the training data \(D\):

\[ h(x) = \begin{cases} y_i, & \text{if } \exists (x_i, y_i) \in D \text{ such that } x = x_i \\ 0, & \text{otherwise} \end{cases} \]

  • This \(h(\cdot)\) achieves 0% training error
  • But it performs poorly on unseen data
  • It doesn’t generalize — it overfits by memorizing specific examples

Visualizing the Tradeoff

Bias vs Variance

Where Does Error Come From?

We can break the expected squared error at a point \(x\) into three components:

\[ \begin{split} \mathbb{E}_{\mathcal{D}}[(h_{\mathcal{D}}(x) - y)^2] &= \underbrace{(\mathbb{E}_{\mathcal{D}}[h_{\mathcal{D}}(x)] - f(x))^2}_{\text{Bias}^2} \\ &+ \underbrace{\mathbb{E}_{\mathcal{D}}\left[(h_{\mathcal{D}}(x) - \mathbb{E}_{\mathcal{D}}[h_{\mathcal{D}}(x)])^2\right]}_{\text{Variance}} \\ &+ \underbrace{\mathbb{E}[(y - f(x))^2]}_{\text{Noise}} \end{split} \]

  • \(h_{\mathcal{D}}(x)\) is the model trained on dataset \(\mathcal{D}\)
  • \(f(x)\) is the true function
  • \(y = f(x) + \epsilon\), and \(\epsilon\) is zero-mean noise

Bias–Variance Tradeoff

  • Bias: Error from wrong assumptions (e.g., model too simple)

    • High bias ⇒ underfitting

  • Variance: Error from sensitivity to training data

    • High variance ⇒ overfitting

  • Noise: Irreducible randomness in the data-generating process

  • We want to find the sweet spot between bias and variance.

Model Complexity and Error

  • As model complexity increases:
    • Bias decreases: the model can fit the true function better
    • Variance increases: the model reacts more to noise in the training data
  • The goal is to minimize the total expected error: \[ \text{Total Error} = \text{Bias}^2 + \text{Variance} + \text{Noise} \]

This is why regularization, cross-validation, and careful model selection matter!

Bias-variance tradeoff

Image source: https://scott.fortmann-roe.com/docs/BiasVariance.html

Bias-variance tradeoff

Image source: Bias-variance tradeoff (Wikipeida)

Regularization

What Is Regularization?

  • Instead of minimizing empirical risk alone: \[ \hat{R}(h) = \frac{1}{n} \sum_{i=1}^n \ell(h(x^{(i)}), y^{(i)}) \]

  • We minimize the regularized objective: \[ \hat{R}_{\text{reg}}(h) = \hat{R}(h) + \lambda \cdot \Omega(h) \]

    • \(\Omega(h)\): complexity penalty
    • \(\lambda\): regularization strength (hyperparameter)

Why Regularization Helps

  • Controls model complexity without needing to change the hypothesis class

  • Helps prevent overfitting (high variance)

  • May introduce bias, but reduces variance — often leads to better generalization

  • Think of it as “tugging the model toward simplicity”

Common Regularization Techniques

  • L2 regularization (Ridge): \[ \Omega(h) = \|w\|_2^2 \quad \text{→ encourages small weights} \]

  • L1 regularization (Lasso): \[ \Omega(h) = \|w\|_1 \quad \text{→ encourages sparsity (some weights = 0)} \]

  • Can apply to:

    • Linear regression and logistic regression
    • Neural networks
    • Other parameterized models

Regularization Tradeoff

  • Small \(\lambda\):
    • Weak regularization → model may overfit
  • Large \(\lambda\):
    • Strong regularization → model may underfit
  • Choose \(\lambda\) using validation data or cross-validation

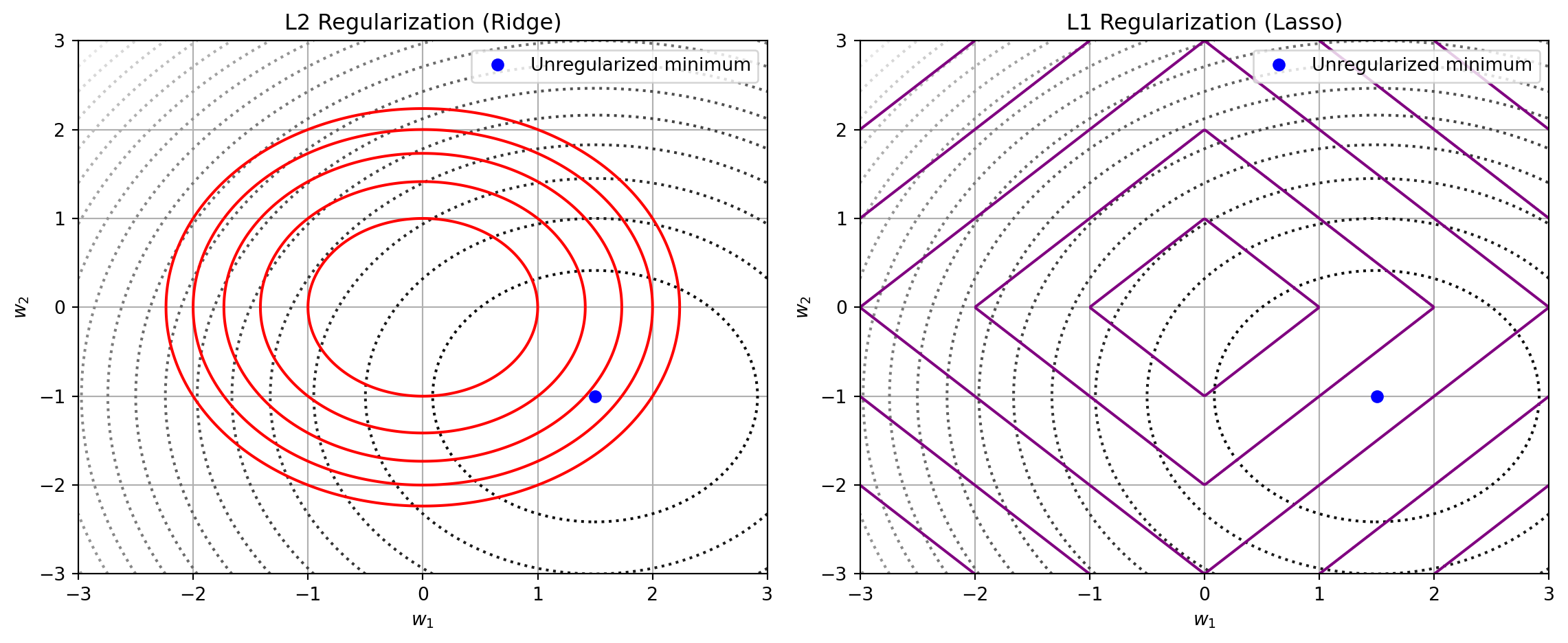

Visualization

L1 vs L2 Regularization: Comparison

Feature L1 (Lasso) L2 (Ridge)
Penalty term \(\lambda \|w\|_1 = \lambda \sum |w_i|\) \(\lambda \|w\|_2^2 = \lambda \sum w_i^2\)
Geometry Diamond-shaped contours Circular contours
Solution behavior Sparse: some \(w_i = 0\) Shrinks all weights smoothly
Feature selection Yes — performs automatic selection No — retains all features
Optimization Non-differentiable at 0 (but convex) Differentiable and convex

L1 vs L2 Cont’d

  • L1: encourages sparsity → good for interpretability and feature selection
  • L2: discourages large weights → good for generalization and numerical stability
